Aqua Flo

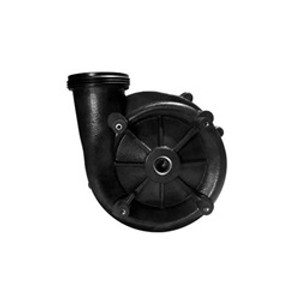

1.5hp Aqua Flow Wet End FMHP Side Discharge 1.5 91040720
- SKU:
- 91040720
- MPN:
- 91040720
Description
1.5hp Aqua Flow Wet End FMHP Side Discharge 1.5 91040720
| Pump Model | Flo-Master FMHP |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1.5hp |
| Volute Fastening Type | 6 Screws |
Side discharge, 1-1/2"mbt suction/discharge, 48 frame wet end for FMHP pump. This wet end is used with a 1.5hp, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
Replaces 01-05-0118 , 431710 , 5031-B , 5031B , 5035C , 91040720 , AF91040720000 , AQF-101-8577 , AQF91040720
