Gecko
Aqua Flo Circ Master Pump 1/15HP 230V 48 Frame 1-Speed 02093001-2010
- SKU:
- 02093001-2010
- MPN:
- 02093001-2010
Description
Aqua Flow Circ Master hot tub Pump 02093001-2010 is a 1/15HP,230V,1-speed,48 Frame CMHP circulation pump.
This hot tub pump connects to 1 1/2 inch inner diameter plumbing and comes with 1 1/2 inch unions.
Side discharge pump is a single speed 230 volt pump that connects to 1 1/2 inch plumbing. Flow rate 25-35 gallons per minute is ideal for continuous duty circulation.

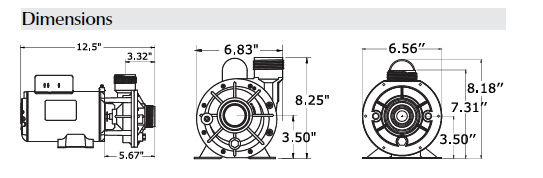

Permanently lubricated ball bearings extends motor life. Unions included to connect to 1 1/2 inch plumbing. Legnth is 12 1/2". CMHP is a Circ-Master Series 1-speed 1 1/2" x 1 1/2" 24-hour circulation pump for hot tubs. Operates at 230 volts /0.6 amps. We also offer this type of Circ Pump in a 120v version - see 02093000-2010.
Free Shipping in Canada on this brand name replacement hot tub pump.
| Manufacturer | AquaFlo/Gecko |
| Pump Model | CMHP |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1/15hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 0.6A |
This pump uses an impeller rated at 1.0hp. When installed on a motor that turns at 1725 RPM, the pump becomes 1/15th horsepower.
Connects to 1 1/2" inner diameter plumbing/hose (measures about 2 7/16" across pump threads)
