Aqua Flo XP2 3HP 230V 2-Speed Pump 06120500-2040 48 Frame

Aqua Flo XP2,48 frame, 2.0" x 2.0" connects to 2 inch plumbing (3" across pump threads), 3HP, 230 volt, 2-speed Pump Complete 06120500-2040 includes free shipping within Canada.

06120500-2040 Specs 8.5 amps on high speed an 2.8 amps on low speed. Some manufacturers may label this as a 3HP pump.

Motor Voltage 230v
Speed 2 Speed (2-Spd)
Motor Amperage/Wattage 8.5A/2.8A
Horsepower 2.0hp
Manufacturer AquaFlo/Gecko
Pump Model XP2
Suction Pipe Size 2"
Suction Connection Type Male Buttress Thread (mbt)
Suction Style Center Suction
Discharge Pipe Size 2"
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Style is Side Discharge
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 4,6,9 o`clock

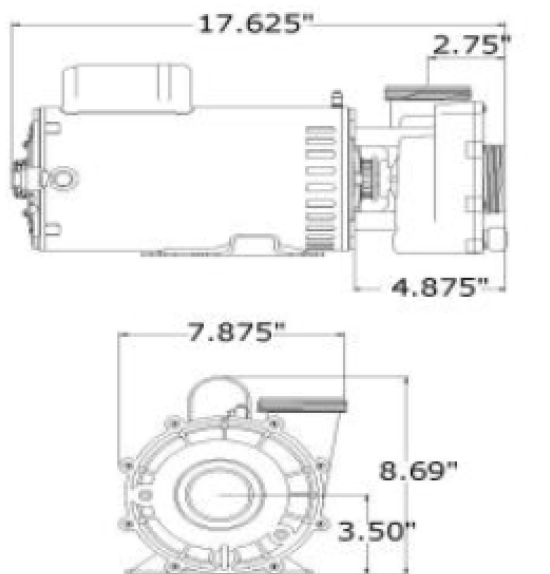

XP2 spa pump dimensions

Need 2" o-rings? (they measure 2 1/2 inches inner diameter)  Add 2x here: 92200210

Replaces 05020400-2040 , 05020737-2000 , 05120000-2040 , 05120000-2300 , 05120001-2040 , 05120001-2340 , 05120002-2300 , 05120608-2300 , 05120761-2000 , 05120761-2040 , 05125000-2340 , 05320761-2000 , 05320761-2040 , 05520000-2300 , 05520000-2340 , 05520001-2340 , 05520002-2340 , 05520003-5340 , 05520004-2300 , 05520092-1340 , 05525000-2340 , 05525000-2370 , 05620001-2300 , 05620001-2340 , 05620002-2040 , 05620003-2040 , 05620003-2340 , 05620004-2000 , 05620004-2300 , 05620005-2340 , 05620006-5340 , 05620007-2300 , 05620256-1340 , 05620374-2340 , 05620485-2340 , 05620489-2340 , 06020500-2040 , 06620390-2 , 07323601-2 , 301632 , 3421021-1U , 3421221-1U , 5121-320 , 630-6117 , AF061205002040 , AQF-10-466 , R63MWDPS-0230 , T55MWCFR-1288
